Spring sleeve with
Federhülse Halbkugel
Spring sleeve with
Preview: Spring sleeve with Preview: Federhülse Halbkugel Preview: Spring sleeve with

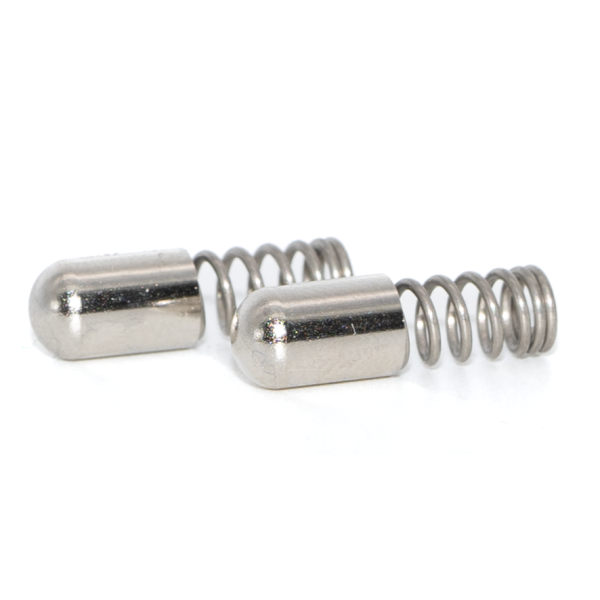

Spring sleeve with semi-spherical, Sleeve steel nickel-plated, Spring stainless steel.

From €0.22 *

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

This product is available in 8 versions.
From €0.22 *

Prices plus VAT plus shipping costs

Bitte wähle zuerst eine Variante

D +/- 0,05:

L0:

L1:

L3:

L2:

Spring force Start F1 ca. N:

Spring force End F2 ca. N:

  • Order number: 1-39-1022-16
Art.-Nr.
D +/- 0,05
L0
L1
L3
L2
Spring force Start F1 ca. N
Spring force End F2 ca. N
Stock
Price
Inquiry
1-39-1022-16 2.2 16 12 7.8 10.5 2.2 3
From 1
€0.23
1-39-1026-08 2.6 8 6.5 3.8 5.2 1.1 2
From 5000
€0.23
1-39-1030-12 3 12 9 6 8.7 6.2 6.8
From 5000
€0.22
1-39-1030-16 3 16 13 8.5 10.7 4.8 8.4
From 5000
€0.24
1-39-1034-12 3.4 12 9 6 7.8 5 7
From 5000
€0.24
1-39-1034-15 3.4 15 12 7.3 8.2 5.9 13.3
From 5000
€0.24
1-39-1040-14 4 14 12 8 9 5 12.3
From 5000
€0.24
1-39-1050-16 5 16 13 8 10.4 8 15
From 5000
€0.29
All prices plus VAT and plus shipping costs
Description
Description
Semi-spherical // Housing steel nickel-plated //  Spring stainless steel ... more
Close menu
Semi-spherical // Housing steel nickel-plated //  Spring stainless steel

Housing steel nickel-plated, Semi-spherical

Spring Stainless steel (1.4310)

On request - Material data sheet 3.1

SDN spring sleeves are used as detent and positioning elements as well as for locking.
